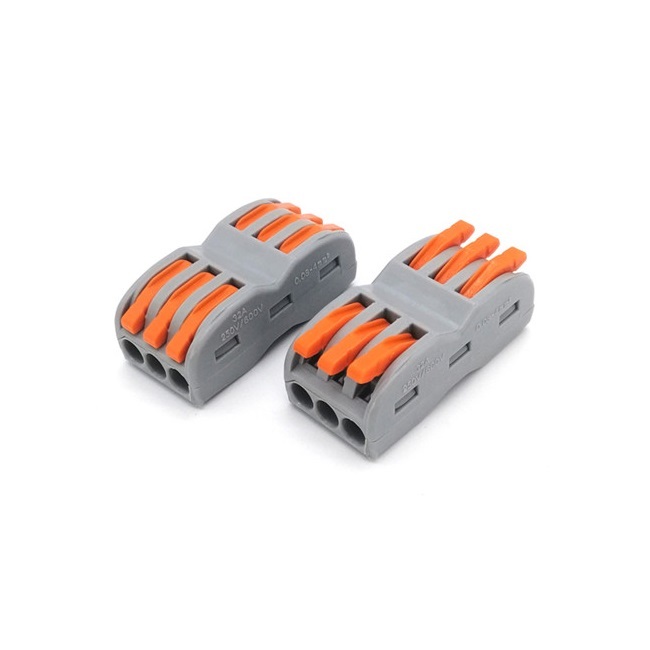

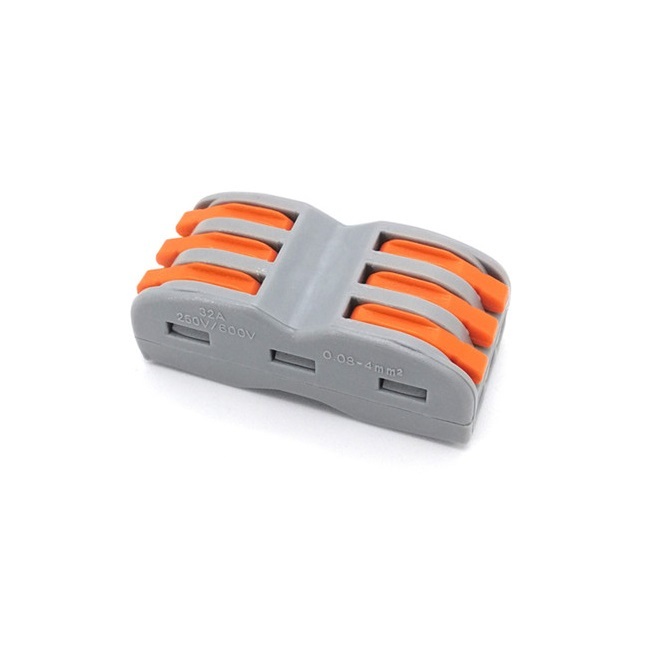

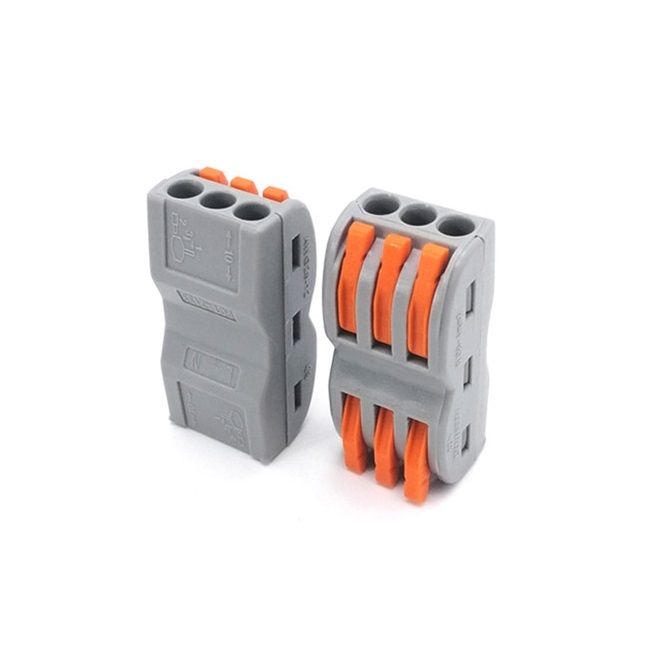

Services PCT-2-3 3 in 3 out level Universal Compact terminal block connector
A PCT-2-3 terminal block connector is a type of electrical connector used for connecting multiple wires together
Features:
Terminal Type: Terminal blocks.
Number of Positions: Typically, the "2-3" designation suggests it can accommodate 2 to 3 wire connections.
Connection Method: Often, these connectors use screw terminals or push-in wire connections for secure and reliable electrical contact.
Current and Voltage Ratings: These connectors are designed to handle specific ranges of current and voltage, suitable for their intended application.
Mounting Style: They can be DIN rail-mounted or panel-mounted depending on the specific model.
Material: Made from materials like plastic for insulation and metal for conductivity, ensuring durability and safety.
Wire Size Compatibility: Designed to accept various wire sizes, often listed in AWG (American Wire Gauge).
Applications:
Industrial Control Systems: Used in control panels and automation systems for connecting sensors, switches, and other devices.
Building Wiring: Employed in electrical distribution panels for connecting different circuits.
Machinery: Utilized in machines to connect motors, relays, and other components.
Renewable Energy Systems: Applied in solar power installations for combining and distributing power from multiple panels.
Benefits:
Safety: Provides secure and stable electrical connections, reducing the risk of loose wires and short circuits.
Ease of Installation: Designed for easy wire insertion and securement, facilitating quick installation and maintenance.
Versatility: Suitable for various applications, accommodating multiple wire sizes and types.

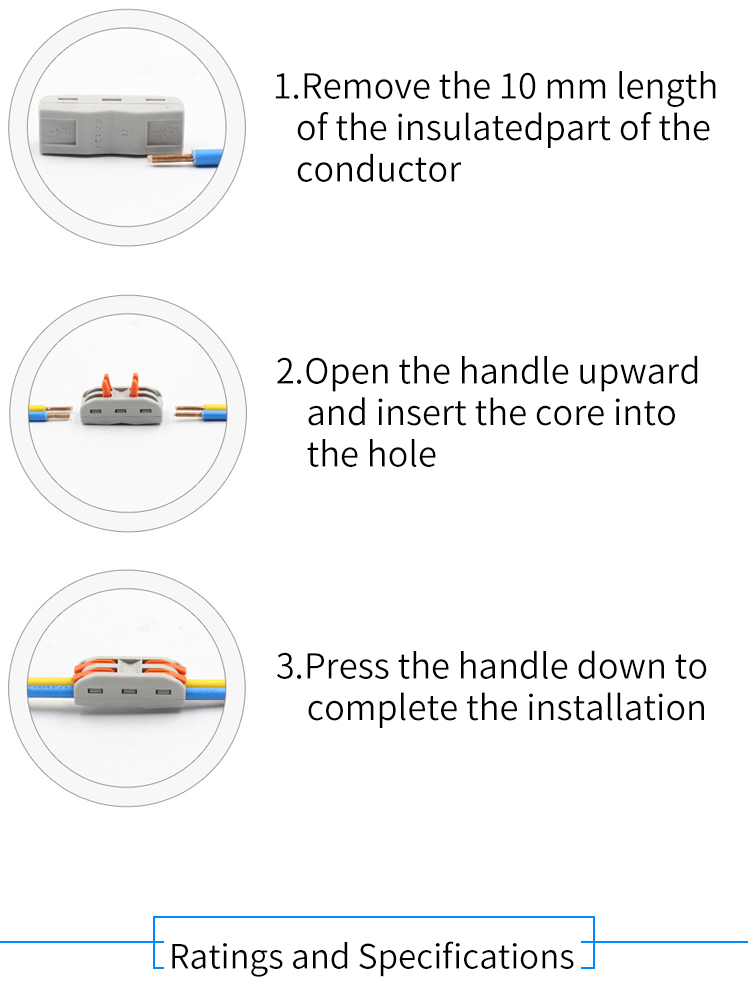

How to Use:
Prepare the Wires: Strip the insulation from the ends of the wires to be connected.
Insert the Wires: Insert the stripped wire ends into the terminal block’s slots.
Secure the Connection: Tighten the screws (for screw terminal types) or ensure the wires are firmly in place (for push-in types).
Check the Connection: Ensure all wires are securely connected and there is no exposed metal that could cause a short circuit.

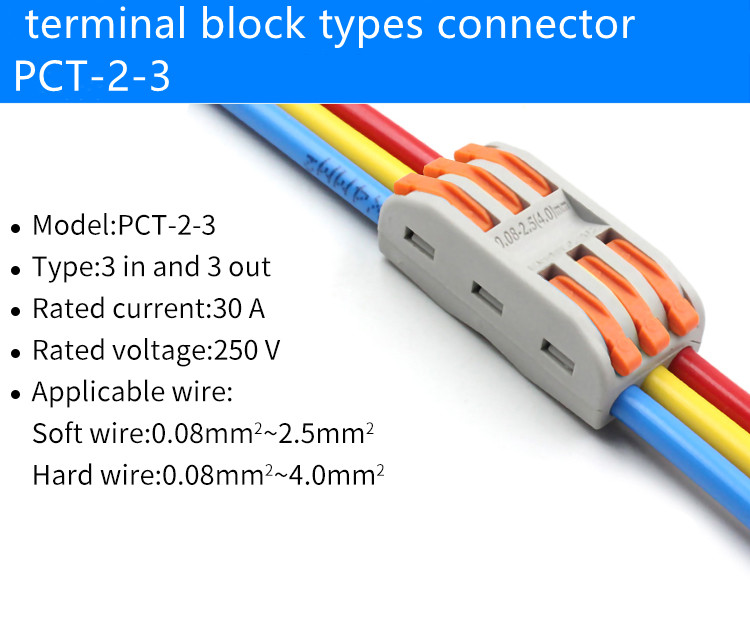

- Place of Origin
|
Xiamen, Fujian,China |
| Brand name: |
Leaka |
| Model Number: |
PCT-2-3 |
| Type: |
Crimp Terminal, 3 in dan 3 out |
| Material: |
Plastic shell |

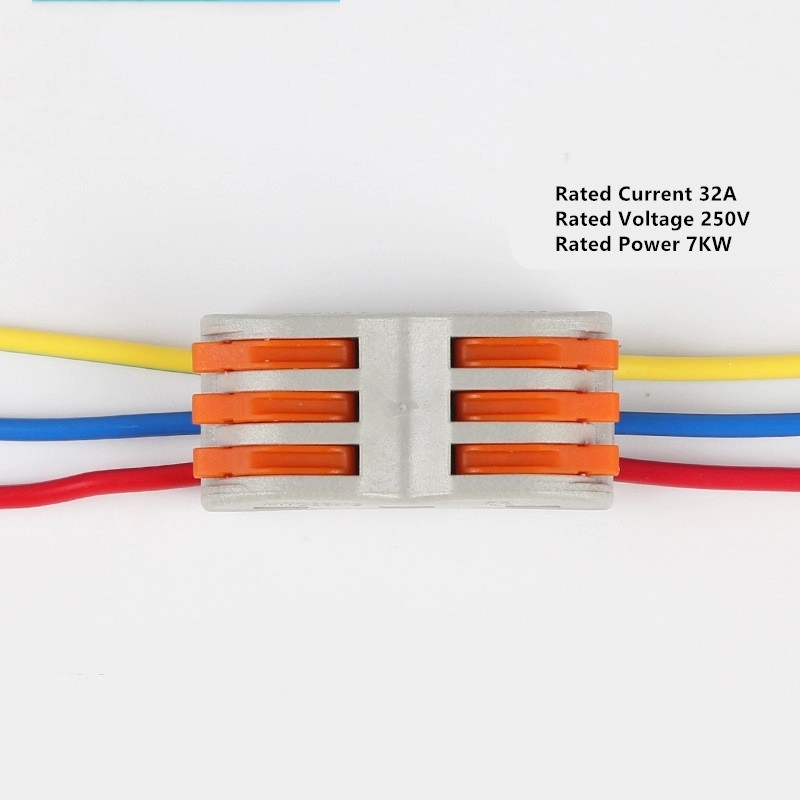

| Rated Current (A): |
32A |
| Rated voltage: |
250V/4KV |
| Wire range: |
AWG 28 - 12 |
| Application: |
Power |
| Stripping length: |
9 to 10 mm |
